1:1 good quake-proof waterproof addition electronic potting silicone rubber

FOB Reference Price:Get Latest Price
  • 1 - 199 Kilograms
    $10.50
  • 200 - 999 Kilograms
    $10.40
  • >=1000 Kilograms
    $10.20
Lead Time:
Quantity(Kilograms) 1 - 200 201 - 1000 1001 - 10000 >10000
Est. Time(days) 3 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong,China
Brand Name:
RongXingDa
Model Number:
1300
Color:
High Transparent
Hardness:
25-30 Shore A
Certificate:
RoHS.MSDS.SGS
Mixing ratio:
1:1
Thermal conductivity:
≥0.3
Dielectric loss factor:
≤0.02
Operating time:
50-60 Mins
Curing time:
10-12 Hrs
Shelf life:
12 Months
MOQ:
1 KG
Supply Ability
Supply Ability:
100 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Tin cured(100:3): 0.25kg/0.5kg/1kg/3kg/5kg/10kg/20kg/25kg /200kg
Platinum cured(1:1): 0.25kg+0.25kg/0.5+0.5kg/1+1kg/3+3kg/5+5kg/ 10+10kg/20+20kg/25+25kg
Platinum cured(10:1):0.5+0.05kg/1+0.1kg/3+0.3k/5+0.5kg/10+1kg/ 20+2kg
Port
Shenzhen,China
Picture Example:
package-img
Lead Time :
Quantity(Kilograms) 1 - 200 201 - 1000 1001 - 10000 >10000
Est. Time(days) 3 7 15 To be negotiated
Product Description

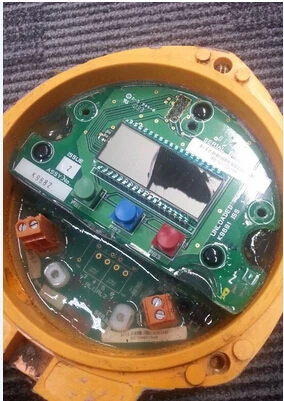

Transparent electronic silicone rubber is a colorless and transparent organic silicon two-component liquid silica gel. It does not produce any by-products in curing reaction and does not cause any corrosion to components. After curing, it forms rubber elastomer which is easy to repair. It has high transparency and high refractive index. It is suitable for small or thin layers (10:1 encapsulation thickness is generally less than 4 mm, generally 2-3 mm,1:1 unlimited thickness) encapsulation and protection of electronic components, modules, photoelectric displays and circuit boards. It is widely used for encapsulation of electronic components and modules with transparent requirements, especially for encapsulation of LED soft lamp bars.
More details




MAIN FEATURES
1.Follow EU ROHS 2.No corrosive effect 3.High waterproof level 4.Excellent adhesion strength 5.Low viscosity,good fluidity 6.Flexibility allows for easy removal 7.Significant extending the life of electronic parts 8.Good temperature and moisture endurance 9.Outstanding isolation and chemical resistance
Precaution:
Please rean the directions carefully for proper using: 1.A small-scale test for compatibility before using on your project is recommended. 2.Weigh Part A and Part B separately in correct proportion(by weigh not volume). 3.Use the clean mixing container and tool to mix them thoroughly. 4.Kppe the working in a clean container for the surface of final products not polluted by contaminants. 5.The primer can not be directly mixed with the silicone,if the primer is necessary,please keep it to be dry,and then make potting. 6.The platinum cured electronic potting silicone(1A:1B) may be inhibited by certain su7bstances such as phosphorus,ammonium,chlorine,carboxylic acid,thiol,hydroxyl and etc. 7.The best thickness of the clear cured electronic potting silicone(10A:1B) is 1-3mm,otherwise itis hard to cure.
Product Paramenters
Item No.
1300
Color
Clear
Density(g/cm³)
0.98
Viscosity(Mpa.s)
1500~2500
Mixing ratio(A:B)
100:10
Working time(Minute)
50~60
Curing time(Hour)
10~12
Hardness(Shore A)
25~30
Tear strength(N/mm)
1.0
Tensile strength(N/m㎡)
1.2
Elongation Break(%)
110
Thermal Conductivity(W/m·k)
≥0.3
Volume Resistivity(Ω.Cm)
≥1014
Break Down Voltage(KV/mm)
≥20
Specific Inductive Capacity(50HZ)
2.7~3.3
Dielectric Loss Factor(20HZ)
≤0.02
Tips: 1.The working time of RTV2 silicone rubber indicates how long the material will remain fluid at 23℃~25℃,However,work should be carried out in the shortest time ,because viscosity increases with me. 2.The curing time of tin cured potting silicone rubber is related to the temperature and the thickness of the product,but platinum cured potting silicone rubber only affected by temperature.

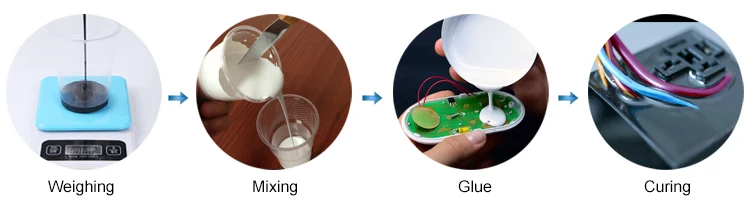

Instruction:
Step 1:Weigh Part A and Part B by the accurate ratio
Step 2:Mix Part A with Part B and stir thoroughly
Step 3:Pour the mixture into the electronic components
Step 4:Cure in no-dust condition at room temperature(the warmer temperature,the faster curing)
Company Profile
Shenzhen Rongxingda Polymer Materials Co.,Ltd. is a professional factory which integrate R&D production and supply the raw material of liquid silicone rubber,including the condensation silicone rubber and addition silicone rubber.We have the advanced production,testing and experiment equipment and we have the ability to provice the high quality technoloogy and service to you.
Our products passed the ISO 9001 and ISO 14001 system certification. The products have passed the SGS, FDA,RoHS, REACH and MSDS certification and so on。Our production has been sold in more than 100 countries and regions.
